FF107DRE180LC4詳細信息
FF107DRE180LC4
關鍵詞：皮帶鏈條式減速機電機_FF107DRE180LC4_FF107DRN180LC4
FF107DRE180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF107DRE180LC4 | 58.12 | 22KW | 25.0rpm | 8270N.m | 587kg | 45200N | 0.95 |
| FF107DRE180LC4 | 50.73 | 22KW | 29.0rpm | 7220N.m | 587kg | 45300N | 1.05 |
| FF107DRE180LC4 | 43.03 | 22KW | 34.0rpm | 6120N.m | 587kg | 45100N | 1.25 |
| FF107DRE180LC4 | 37.61 | 22KW | 39.0rpm | 5350N.m | 587kg | 44700N | 1.45 |
| FF107DRE180LC4 | 31.80 | 22KW | 46.0rpm | 4520N.m | 587kg | 44000N | 1.70 |
| FF107DRE180LC4 | 33.79 | 22KW | 44.0rpm | 4810N.m | 587kg | 44300N | 1.55 |
| FF107DRE180LC4 | 27.57 | 22KW | 54.0rpm | 3920N.m | 587kg | 43300N | 2.00 |
| FF107DRE180LC4 | 25.14 | 22KW | 59.0rpm | 3580N.m | 587kg | 42700N | 2.20 |
| FF107DRE180LC4 | 21.76 | 22KW | 68.0rpm | 3090N.m | 587kg | 41800N | 2.50 |
| FF107DRE180LC4 | 19.20 | 22KW | 77.0rpm | 2730N.m | 587kg | 40900N | 2.90 |
FF107DRN180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF107DRN180LC4 | 58.12 | 22KW | 25.0rpm | 8270N.m | 587kg | 45200N | 0.95 |
| FF107DRN180LC4 | 50.73 | 22KW | 29.0rpm | 7220N.m | 587kg | 45300N | 1.05 |
| FF107DRN180LC4 | 43.03 | 22KW | 34.0rpm | 6120N.m | 587kg | 45100N | 1.25 |
| FF107DRN180LC4 | 37.61 | 22KW | 39.0rpm | 5350N.m | 587kg | 44700N | 1.45 |
| FF107DRN180LC4 | 31.80 | 22KW | 46.0rpm | 4520N.m | 587kg | 44000N | 1.70 |
| FF107DRN180LC4 | 33.79 | 22KW | 44.0rpm | 4810N.m | 587kg | 44300N | 1.55 |
| FF107DRN180LC4 | 27.57 | 22KW | 54.0rpm | 3920N.m | 587kg | 43300N | 2.00 |
| FF107DRN180LC4 | 25.14 | 22KW | 59.0rpm | 3580N.m | 587kg | 42700N | 2.20 |
| FF107DRN180LC4 | 21.76 | 22KW | 68.0rpm | 3090N.m | 587kg | 41800N | 2.50 |
| FF107DRN180LC4 | 19.20 | 22KW | 77.0rpm | 2730N.m | 587kg | 40900N | 2.90 |
FF107DRE180LC4減速器電動機類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

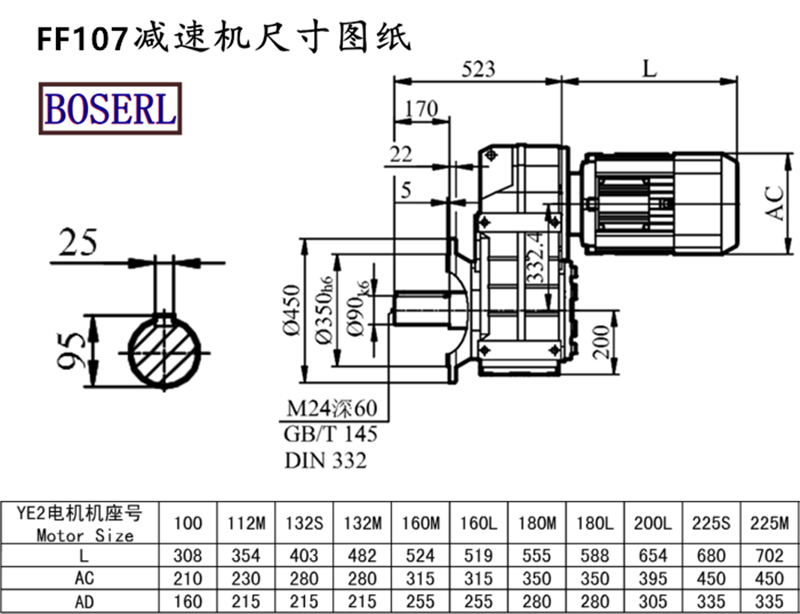

FF107DRE180LC4減速器電動機安裝尺寸圖紙
FF107DRE180LC4減速器電動機生產廠家，看廠請?zhí)崆叭祛A(yù)約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
