K107R77DM71S4詳細信息

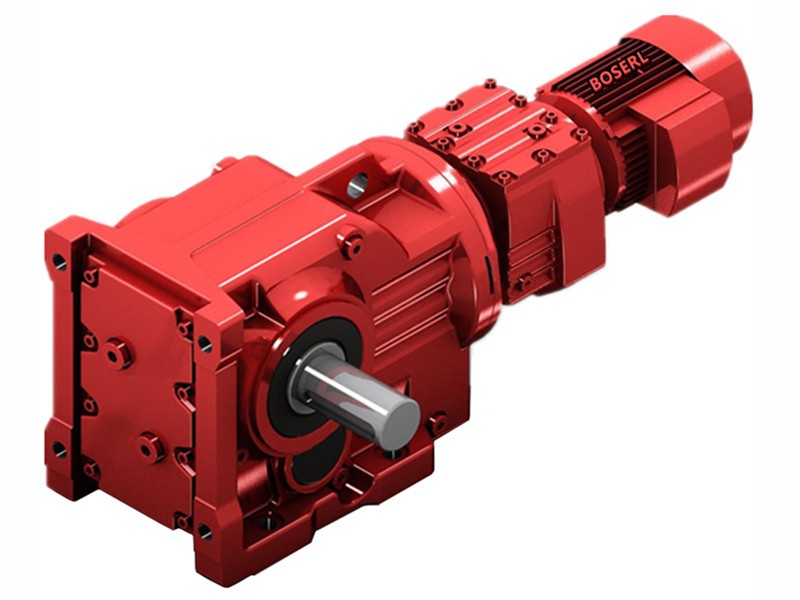

K107R77DM71S4
關鍵詞：5.5KW電機如何配直角軸減速箱_K107R77DM71S4_K107R77DRS132ML4
K107R77DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K107R77DM71S4 | 6184 | 0.25KW | 0.21r/min | 9460N.m | 296kg | 65000N | 0.85 |
| K107R77DM71S4 | 5662 | 0.25KW | 0.23r/min | 8480N.m | 296kg | 65000N | 0.95 |
| K107R77DM71S4 | 5138 | 0.25KW | 0.25r/min | 7690N.m | 296kg | 65000N | 1.05 |
| K107R77DM71S4 | 4359 | 0.25KW | 0.30r/min | 6730N.m | 296kg | 65000N | 1.20 |
| K107R77DM71S4 | 3810 | 0.25KW | 0.34r/min | 5880N.m | 296kg | 65000N | 1.35 |
| K107R77DM71S4 | 3358 | 0.25KW | 0.39r/min | 5060N.m | 296kg | 65000N | 1.60 |
| K107R77DM71S4 | 2977 | 0.25KW | 0.44r/min | 4550N.m | 296kg | 65000N | 1.75 |
| K107R77DM71S4 | 2599 | 0.25KW | 0.50r/min | 3970N.m | 296kg | 65000N | 2.00 |
| K107R77DM71S4 | 2286 | 0.25KW | 0.57r/min | 3440N.m | 296kg | 65000N | 2.30 |
| K107R77DM71S4 | 1939 | 0.25KW | 0.67r/min | 2920N.m | 296kg | 65000N | 2.70 |
| K107R77DM71S4 | 1713 | 0.25KW | 0.76r/min | 2670N.m | 296kg | 65000N | 3.00 |
| K107R77DM71S4 | 1554 | 0.25KW | 0.84r/min | 2430N.m | 296kg | 65000N | 3.30 |
| K107R77DM71S4 | 1336 | 0.25KW | 0.97r/min | 2080N.m | 296kg | 65000N | 3.80 |
K107R77DRS132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K107R77DRS132ML4 | 222 | 5.5KW | 6.60r/min | 7400N.m | 346kg | 65000N | 1.10 |
| K107R77DRS132ML4 | 196 | 5.5KW | 7.40r/min | 6550N.m | 346kg | 65000N | 1.20 |
| K107R77DRS132ML4 | 174 | 5.5KW | 8.40r/min | 5860N.m | 346kg | 65000N | 1.25 |
| K107R77DRS132ML4 | 154 | 5.5KW | 9.40r/min | 5190N.m | 346kg | 65000N | 1.40 |
| K107R77DRS132ML4 | 140 | 5.5KW | 10.0r/min | 4710N.m | 346kg | 65000N | 1.55 |
K107R77DM71S4減速機類型：
K107R77DM71S4底腳安裝斜齒輪—傘齒輪減速電機
KA107R77DM71S4底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV107BR77DM71S4底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH107BR77DM71S4底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF107R77DM71S4B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF107R77DM71S4B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF107R77DM71S4B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF107R77DM71S4B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA107R77DM71S4空心軸斜齒輪─傘齒輪減速電機
KV107R77DM71S4花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH107R77DM71S4空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT107R77DM71S4空心軸安裝斜齒輪—傘齒輪減速電機
KAZ107R77DM71S4B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ107R77DM71S4B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ107R77DM71S4B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
K107R77DM71S4減速機馬達安裝尺寸圖紙
K107R77DM71S4減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約K系列減速機
關鍵詞:K系列減速機與電機_傳動箱_傳動角箱_傳動減速機電機一套_傳動減速器_螺旋錐齒輪減速機_K系列減速機生產廠家
K系列減速機型號：K37減速機,K47減速機,K57減速機,K67減速機,K77減速機,K87減速機,K97減速機,K107減速機,K127減速機,K157減速機,K167減速機,K187減速機
K系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 5.5KW電機如何配直角軸減速箱 K107R77DM71S4 K107R77DRS132ML4
