K57DRN80MK4詳細信息
K57DRN80MK4
訂購熱線：13360667204
關鍵詞：輸出550N.m減速機電機_K57DRN80MK4_K57DRN80N4
K57DRN80MK4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K57DRN80MK4 | 90.26 | 1.1KW | 16rpm | 670N.m | 37Kg | 3500N | 0.9 |
| K57DRN80MK4 | 76.56 | 1.1KW | 18rpm | 570N.m | 37Kg | 7870N | 1.05 |
| K57DRN80MK4 | 69.12 | 1.1KW | 20rpm | 610N.m | 37Kg | 8300N | 1.15 |
| K57DRN80MK4 | 60.81 | 1.1KW | 23rpm | 450N.m | 37Kg | 8640N | 1.3 |
| K57DRN80MK4 | 57.42 | 1.1KW | 25rpm | 425N.m | 37Kg | 8760N | 1.4 |
| K57DRN80MK4 | 48.89 | 1.1KW | 29rpm | 360N.m | 37Kg | 9030N | 1.65 |
| K57DRN80MK4 | 44.43 | 1.1KW | 32rpm | 330N.m | 37Kg | 9170N | 1.8 |
| K57DRN80MK4 | 38.49 | 1.1KW | 37rpm | 285N.m | 37Kg | 9340N | 2.1 |
| K57DRN80MK4 | 35.7 | 1.1KW | 39rpm | 265N.m | 37Kg | 9410N | 2.3 |
| K57DRN80MK4 | 30.28 | 1.1KW | 47rpm | 225N.m | 37Kg | 9550N | 2.7 |
| K57DRN80MK4 | 27.34 | 1.1KW | 52rpm | 200N.m | 37Kg | 9500N | 3 |
| K57DRN80MK4 | 24.05 | 1.1KW | 59rpm | 179N.m | 37Kg | 9200N | 3.4 |
| K57DRN80MK4 | 22.71 | 1.1KW | 62rpm | 169N.m | 37Kg | 9070N | 3.6 |
| K57DRN80MK4 | 19.34 | 1.1KW | 73rpm | 144N.m | 37Kg | 8710N | 4 |
| K57DRN80MK4 | 17.57 | 1.1KW | 80rpm | 131N.m | 37Kg | 8490N | 4.2 |
| K57DRN80MK4 | 15.22 | 1.1KW | 93rpm | 113N.m | 37Kg | 8170N | 4.7 |
| K57DRN80MK4 | 13.25 | 1.1KW | 106rpm | 99N.m | 37Kg | 7860N | 5.2 |
| K57DRN80MK4 | 11.92 | 1.1KW | 118rpm | 89N.m | 37Kg | 7550N | 4.7 |
| K57DRN80MK4 | 11.26 | 1.1KW | 125rpm | 84N.m | 37Kg | 7440N | 5 |
| K57DRN80MK4 | 9.59 | 1.1KW | 147rpm | 71N.m | 37Kg | 7110N | 5.7 |
| K57DRN80MK4 | 8.71 | 1.1KW | 162rpm | 65N.m | 37Kg | 6920N | 6 |
| K57DRN80MK4 | 7.55 | 1.1KW | 187rpm | 56N.m | 37Kg | 6630N | 6.5 |
| K57DRN80MK4 | 6.57 | 1.1KW | 215rpm | 49N.m | 37Kg | 6370N | 7.1 |
| K57DRN80MK4 | 4.69 | 1.1KW | 3rpm | 35N.m | 37Kg | 5760N | 8.6 |
K57DRN80N4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K57DRN80N4 | 90.26 | 1.1KW | 16rpm | 670N.m | 37Kg | 3500N | 0.9 |
| K57DRN80N4 | 76.56 | 1.1KW | 18rpm | 570N.m | 37Kg | 7870N | 1.05 |
| K57DRN80N4 | 69.12 | 1.1KW | 20rpm | 610N.m | 37Kg | 8300N | 1.15 |
| K57DRN80N4 | 60.81 | 1.1KW | 23rpm | 450N.m | 37Kg | 8640N | 1.3 |
| K57DRN80N4 | 57.42 | 1.1KW | 25rpm | 425N.m | 37Kg | 8760N | 1.4 |
| K57DRN80N4 | 48.89 | 1.1KW | 29rpm | 360N.m | 37Kg | 9030N | 1.65 |
| K57DRN80N4 | 44.43 | 1.1KW | 32rpm | 330N.m | 37Kg | 9170N | 1.8 |
| K57DRN80N4 | 38.49 | 1.1KW | 37rpm | 285N.m | 37Kg | 9340N | 2.1 |
| K57DRN80N4 | 35.7 | 1.1KW | 39rpm | 265N.m | 37Kg | 9410N | 2.3 |
| K57DRN80N4 | 30.28 | 1.1KW | 47rpm | 225N.m | 37Kg | 9550N | 2.7 |
| K57DRN80N4 | 27.34 | 1.1KW | 52rpm | 200N.m | 37Kg | 9500N | 3 |
| K57DRN80N4 | 24.05 | 1.1KW | 59rpm | 179N.m | 37Kg | 9200N | 3.4 |
| K57DRN80N4 | 22.71 | 1.1KW | 62rpm | 169N.m | 37Kg | 9070N | 3.6 |
| K57DRN80N4 | 19.34 | 1.1KW | 73rpm | 144N.m | 37Kg | 8710N | 4 |
| K57DRN80N4 | 17.57 | 1.1KW | 80rpm | 131N.m | 37Kg | 8490N | 4.2 |
| K57DRN80N4 | 15.22 | 1.1KW | 93rpm | 113N.m | 37Kg | 8170N | 4.7 |
| K57DRN80N4 | 13.25 | 1.1KW | 106rpm | 99N.m | 37Kg | 7860N | 5.2 |
| K57DRN80N4 | 11.92 | 1.1KW | 118rpm | 89N.m | 37Kg | 7550N | 4.7 |
| K57DRN80N4 | 11.26 | 1.1KW | 125rpm | 84N.m | 37Kg | 7440N | 5 |
| K57DRN80N4 | 9.59 | 1.1KW | 147rpm | 71N.m | 37Kg | 7110N | 5.7 |
| K57DRN80N4 | 8.71 | 1.1KW | 162rpm | 65N.m | 37Kg | 6920N | 6 |
| K57DRN80N4 | 7.55 | 1.1KW | 187rpm | 56N.m | 37Kg | 6630N | 6.5 |
| K57DRN80N4 | 6.57 | 1.1KW | 215rpm | 49N.m | 37Kg | 6370N | 7.1 |
| K57DRN80N4 | 4.69 | 1.1KW | 3rpm | 35N.m | 37Kg | 5760N | 8.6 |

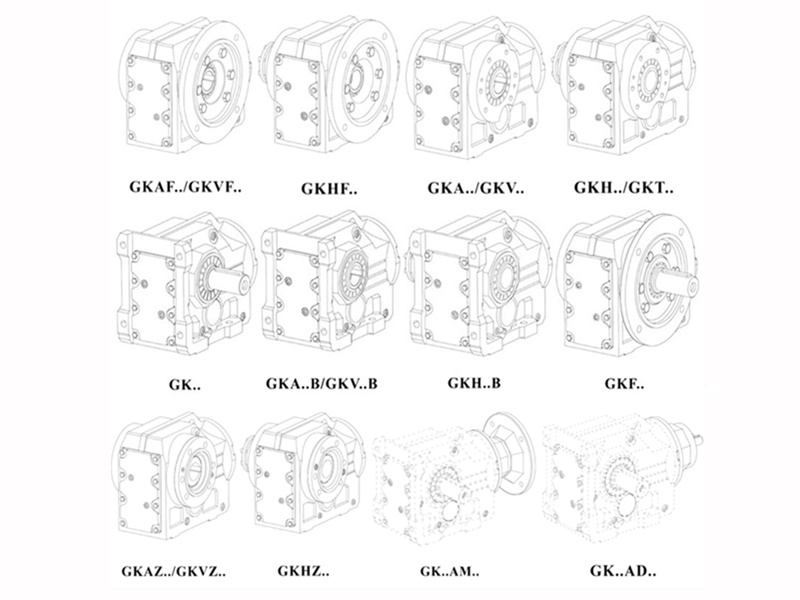

K57DRN80MK4減速機類型：
K..DR..底腳安裝斜齒輪—傘齒輪減速電機
KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA..DR..空心軸斜齒輪─傘齒輪減速電機
KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機
KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
K57DRN80MK4減速機馬達安裝尺寸圖紙
K57DRN80MK4減速機生產工廠展示：看廠請?zhí)崆叭祛A約
K系列減速機應用案例展示：
關鍵詞:K系列減速機與電機_傳動箱_傳動角箱_傳動減速機電機一套_傳動減速器_螺旋錐齒輪減速機_K系列減速機生產廠家
K系列減速機型號：K37減速機,K47減速機,K57減速機,K67減速機,K77減速機,K87減速機,K97減速機,K107減速機,K127減速機,K157減速機,K167減速機,K187減速機
K系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 輸出550N.m減速機電機 K57DRN80MK4 K57DRN80N4
- 上一條K57DRS80K4
- 下一條K57DM80N4
