R37DRE80K4詳細信息
R37DRE80K4
訂購熱線：13360667204
關鍵詞：1.1千瓦電機配減速機_R37DRE80K4_R37DRN80K4_1.1千瓦電機配減速器_減速機配電機1.1千瓦
R37DRE80K4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R37DRE80K4 | 61.18 | 0.55KW | 23.0rpm | 230N.m | 23.5kg | 4210N | 0.85 |
| R37DRE80K4 | 55.76 | 0.55KW | 25.0rpm | 210N.m | 23.5kg | 4780N | 0.95 |
| R37DRE80K4 | 48.08 | 0.55KW | 29.0rpm | 183N.m | 23.5kg | 5150N | 1.10 |
| R37DRE80K4 | 44.81 | 0.55KW | 31.0rpm | 171N.m | 23.5kg | 5220N | 1.15 |
| R37DRE80K4 | 39.17 | 0.55KW | 35.0rpm | 149N.m | 23.5kg | 5050N | 1.35 |
| R37DRE80K4 | 36.72 | 0.55KW | 38.0rpm | 140N.m | 23.5kg | 4980N | 1.45 |
| R37DRE80K4 | 32.4 | 0.55KW | 43.0rpm | 123N.m | 23.5kg | 4820N | 1.60 |
| R37DRE80K4 | 28.73 | 0.55KW | 48.0rpm | 109N.m | 23.5kg | 4680N | 1.85 |
| R37DRE80K4 | 24.42 | 0.55KW | 57.0rpm | 93N.m | 23.5kg | 4480N | 2.20 |
| R37DRE80K4 | 22.27 | 0.55KW | 62.0rpm | 85N.m | 23.5kg | 4370N | 2.40 |
| R37DRE80K4 | 19.31 | 0.55KW | 71.0rpm | 74N.m | 23.5kg | 4200N | 2.70 |
| R37DRE80K4 | 18.05 | 0.55KW | 76.0rpm | 69N.m | 23.5kg | 4120N | 2.90 |
| R37DRE80K4 | 15.6 | 0.55KW | 88.0rpm | 59N.m | 23.5kg | 3960N | 3.40 |
| R37DRE80K4 | 13.25 | 0.55KW | 104rpm | 50N.m | 23.5kg | 3780N | 3.80 |
| R37DRE80K4 | 11.83 | 0.55KW | 117rpm | 45N.m | 23.5kg | 3650N | 4.10 |
R37DRN80K4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R37DRN80K4 | 61.18 | 0.55KW | 23.0rpm | 230N.m | 23.5kg | 4210N | 0.85 |
| R37DRN80K4 | 55.76 | 0.55KW | 25.0rpm | 210N.m | 23.5kg | 4780N | 0.95 |
| R37DRN80K4 | 48.08 | 0.55KW | 29.0rpm | 183N.m | 23.5kg | 5150N | 1.10 |
| R37DRN80K4 | 44.81 | 0.55KW | 31.0rpm | 171N.m | 23.5kg | 5220N | 1.15 |
| R37DRN80K4 | 39.17 | 0.55KW | 35.0rpm | 149N.m | 23.5kg | 5050N | 1.35 |
| R37DRN80K4 | 36.72 | 0.55KW | 38.0rpm | 140N.m | 23.5kg | 4980N | 1.45 |
| R37DRN80K4 | 32.4 | 0.55KW | 43.0rpm | 123N.m | 23.5kg | 4820N | 1.60 |
| R37DRN80K4 | 28.73 | 0.55KW | 48.0rpm | 109N.m | 23.5kg | 4680N | 1.85 |
| R37DRN80K4 | 24.42 | 0.55KW | 57.0rpm | 93N.m | 23.5kg | 4480N | 2.20 |
| R37DRN80K4 | 22.27 | 0.55KW | 62.0rpm | 85N.m | 23.5kg | 4370N | 2.40 |
| R37DRN80K4 | 19.31 | 0.55KW | 71.0rpm | 74N.m | 23.5kg | 4200N | 2.70 |
| R37DRN80K4 | 18.05 | 0.55KW | 76.0rpm | 69N.m | 23.5kg | 4120N | 2.90 |
| R37DRN80K4 | 15.6 | 0.55KW | 88.0rpm | 59N.m | 23.5kg | 3960N | 3.40 |
| R37DRN80K4 | 13.25 | 0.55KW | 104rpm | 50N.m | 23.5kg | 3780N | 3.80 |
| R37DRN80K4 | 11.83 | 0.55KW | 117rpm | 45N.m | 23.5kg | 3650N | 4.10 |

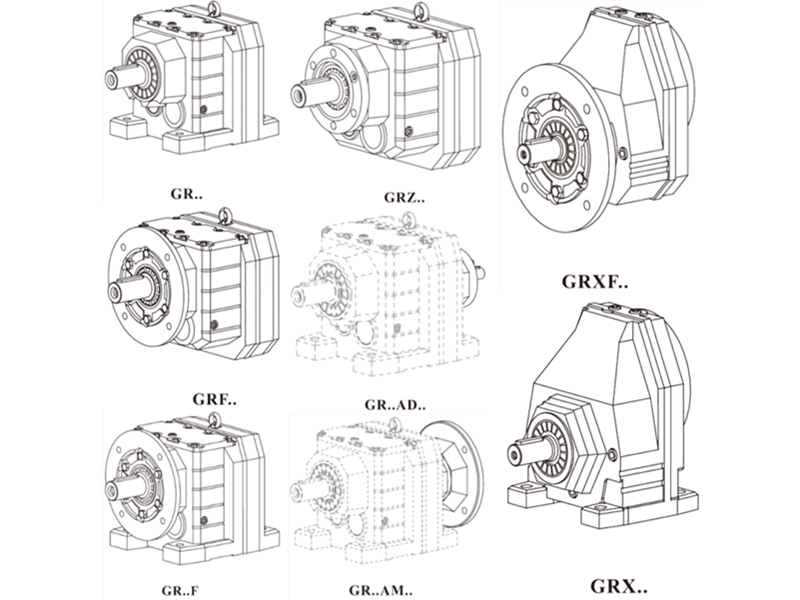

R37DRE80K4電機減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機
R37DRE80K4電機減速機安裝尺寸圖紙
R37DRE80K4電機減速機生產工廠展示：看廠請?zhí)崆叭祛A約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 1.1千瓦電機配減速機 R37DRE80K4 R37DRN80K4 1.1千瓦電機配減速器 減速機配電機1.1千瓦
