RF97R57DM71S4詳細信息
RF97R57DM71S4
訂購熱線：13360667204
關鍵詞：90KW電機能配多大同軸減速電機_RF97R57DM71S4_RF97R57DR80MK4
RF97R57DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF97R57DM71S4 | 1733 | 0.25KW | 0.75r/min | 2840N.m | 129kg | 22000 N | 1.05 |
| RF97R57DM71S4 | 1623 | 0.25KW | 0.80r/min | 2650N.m | 129kg | 23200N | 1.15 |
| RF97R57DM71S4 | 1823 | 0.25KW | 0.71r/min | 2960N.m | 129kg | 21100N | 1.00 |
| RF97R57DM71S4 | 1583 | 0.25KW | 0.82r/min | 2570N.m | 129kg | 23700 N | 1.15 |
| RF97R57DM71S4 | 1396 | 0.25KW | 0.93r/min | 2230N.m | 129kg | 25400N | 1.35 |
| RF97R57DM71S4 | 1228 | 0.25KW | 1.10r/min | 1940N.m | 129kg | 26600N | 1.55 |
| RF97R57DM71S4 | 1069 | 0.25KW | 1.20r/min | 1750N.m | 129kg | 27300N | 1.70 |
| RF97R57DM71S4 | 938 | 0.25KW | 1.40r/min | 1520N.m | 129kg | 27600N | 1.95 |
| RF97R57DM71S4 | 632 | 0.25KW | 2.10r/min | 990N.m | 129kg | 28200N | 3.00 |
| RF97R57DM71S4 | 824 | 0.25KW | 1.60r/min | 1300N.m | 129kg | 27900N | 2.30 |
| RF97R57DM71S4 | 737 | 0.25KW | 1.80r/min | 1160N.m | 129kg | 28100N | 2.60 |
RF97R57DR80MK4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF97R57DR80MK4 | 824 | 0.55KW | 1.70r/min | 2820N.m | 134kg | 22100N | 1.05 |
| RF97R57DR80MK4 | 737 | 0.55KW | 1.90r/min | 2530N.m | 134kg | 23900N | 1.20 |
| RF97R57DR80MK4 | 560 | 0.55KW | 2.50r/min | 1880N.m | 134kg | 26800N | 1.60 |
| RF97R57DR80MK4 | 484 | 0.55KW | 2.80r/min | 1640N.m | 134kg | 27400N | 1.85 |
| RF97R57DR80MK4 | 632 | 0.55KW | 2.20r/min | 2160N.m | 134kg | 25700N | 1.40 |
| RF97R57DR80MK4 | 431 | 0.55KW | 3.20r/min | 1480N.m | 134kg | 27700N | 2.00 |
| RF97R57DR80MK4 | 379 | 0.55KW | 3.60r/min | 1300N.m | 134kg | 27900N | 2.30 |
| RF97R57DR80MK4 | 336 | 0.55KW | 4.10r/min | 1160N.m | 134kg | 28100N | 2.60 |
| RF97R57DR80MK4 | 296 | 0.55KW | 4.70r/min | 1010N.m | 134kg | 28200N | 3.00 |
| RF97R57DR80MK4 | 249 | 0.55KW | 5.50r/min | 840N.m | 134kg | 28400N | 3.60 |

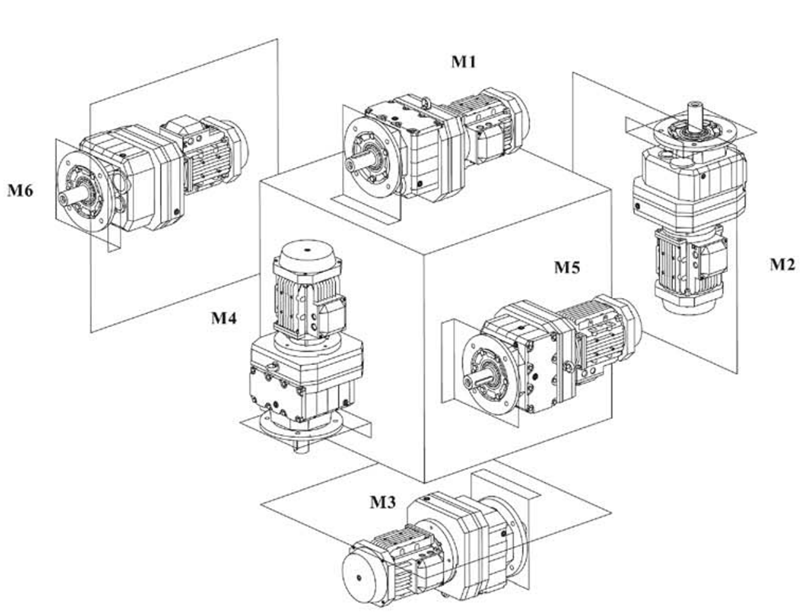

RF97R57DM71S4減速機類型：
RX97R57DM71S4單級底腳安裝斜齒輪減速電機
RXF97R57DM71S4單級B5法蘭安裝斜齒輪減速機電機
R97R57DM71S4底腳安裝斜齒輪減速電機
R97FR57DM71S4底腳、B5法蘭安裝斜齒輪減速電機
RF97FR57DM71S4B5法蘭安裝斜齒輪減速電機
RZ97FR57DM71S4B14法蘭安裝斜齒輪減速電機

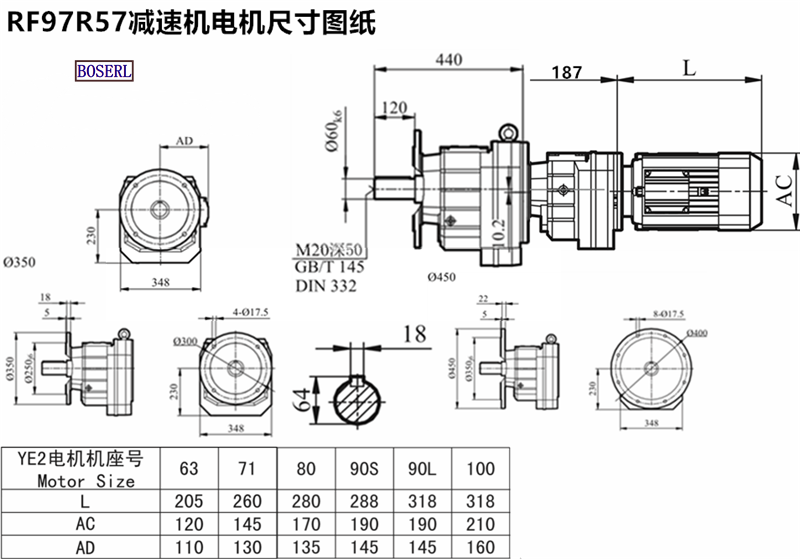

RF97R57DM71S4減速機馬達安裝尺寸圖紙
RF97R57DM71S4減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約直線輸出減速機
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 90KW電機能配多大同軸減速電機 RF97R57DM71S4 RF97R57DR80MK4
- 上一條RF97R57DT71S4
- 下一條RF97R57DV71MS4
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| RF97R57DM71S4減速機樣本 |
|
| RF97R57DM71S4減速機三維圖紙 |
|
