SAF77DM100L4詳細信息
SAF77DM100L4
訂購熱線：13360667204
關鍵詞：0.75千瓦剎車電機減速機一體機_SAF77DM100L4_SAF77DM100LC4
SAF77DM100L4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF77DM100L4 | 85.22 | 3KW | 17.0rpm | 1240N.m | 85kg | 11900N | 0.90 |
| SAF77DM100L4 | 75.20 | 3KW | 19.0rpm | 1100N.m | 85kg | 12500N | 0.95 |
| SAF77DM100L4 | 66.67 | 3KW | 22.0rpm | 980N.m | 85kg | 12300N | 1.05 |
| SAF77DM100L4 | 63.03 | 3KW | 23.0rpm | 1060N.m | 85kg | 10900N | 1.05 |
| SAF77DM100L4 | 56.92 | 3KW | 26.0rpm | 850N.m | 85kg | 12000N | 1.15 |
| SAF77DM100L4 | 53.87 | 3KW | 27.0rpm | 910N.m | 85kg | 10800N | 1.20 |
| SAF77DM100L4 | 49.38 | 3KW | 29.0rpm | 840N.m | 85kg | 10800N | 1.30 |
| SAF77DM100L4 | 43.33 | 3KW | 34.0rpm | 740N.m | 85kg | 10600N | 1.50 |
| SAF77DM100L4 | 41.07 | 3KW | 35.0rpm | 705N.m | 85kg | 10600N | 1.55 |
| SAF77DM100L4 | 35.94 | 3KW | 40.0rpm | 620N.m | 85kg | 10400N | 1.75 |
| SAF77DM100L4 | 32.38 | 3KW | 45.0rpm | 560N.m | 85kg | 10200N | 1.95 |
| SAF77DM100L4 | 28.41 | 3KW | 51.0rpm | 490N.m | 85kg | 10000N | 2.10 |
| SAF77DM100L4 | 25.07 | 3KW | 58.0rpm | 435N.m | 85kg | 9770N | 2.30 |
| SAF77DM100L4 | 22.89 | 3KW | 64.0rpm | 410N.m | 85kg | 8640N | 1.70 |
| SAF77DM100L4 | 20.99 | 3KW | 69.0rpm | 375N.m | 85kg | 8550N | 1.85 |
| SAF77DM100L4 | 18.42 | 3KW | 79.0rpm | 330N.m | 85kg | 8400N | 2.10 |
| SAF77DM100L4 | 17.45 | 3KW | 83.0rpm | 315N.m | 85kg | 8340N | 2.20 |
| SAF77DM100L4 | 15.28 | 3KW | 95.0rpm | 275N.m | 85kg | 8160N | 2.60 |
| SAF77DM100L4 | 13.76 | 3KW | 106rpm | 250N.m | 85kg | 8010N | 2.80 |
| SAF77DM100L4 | 12.07 | 3KW | 121rpm | 220N.m | 85kg | 7810N | 3.30 |
| SAF77DM100L4 | 10.65 | 3KW | 137rpm | 195N.m | 85kg | 7610N | 3.70 |
SAF77DM100LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SAF77DM100LC4 | 85.22 | 3KW | 17.0rpm | 1240N.m | 85kg | 11900N | 0.90 |
| SAF77DM100LC4 | 75.20 | 3KW | 19.0rpm | 1100N.m | 85kg | 12500N | 0.95 |
| SAF77DM100LC4 | 66.67 | 3KW | 22.0rpm | 980N.m | 85kg | 12300N | 1.05 |
| SAF77DM100LC4 | 63.03 | 3KW | 23.0rpm | 1060N.m | 85kg | 10900N | 1.05 |
| SAF77DM100LC4 | 56.92 | 3KW | 26.0rpm | 850N.m | 85kg | 12000N | 1.15 |
| SAF77DM100LC4 | 53.87 | 3KW | 27.0rpm | 910N.m | 85kg | 10800N | 1.20 |
| SAF77DM100LC4 | 49.38 | 3KW | 29.0rpm | 840N.m | 85kg | 10800N | 1.30 |
| SAF77DM100LC4 | 43.33 | 3KW | 34.0rpm | 740N.m | 85kg | 10600N | 1.50 |
| SAF77DM100LC4 | 41.07 | 3KW | 35.0rpm | 705N.m | 85kg | 10600N | 1.55 |
| SAF77DM100LC4 | 35.94 | 3KW | 40.0rpm | 620N.m | 85kg | 10400N | 1.75 |
| SAF77DM100LC4 | 32.38 | 3KW | 45.0rpm | 560N.m | 85kg | 10200N | 1.95 |
| SAF77DM100LC4 | 28.41 | 3KW | 51.0rpm | 490N.m | 85kg | 10000N | 2.10 |
| SAF77DM100LC4 | 25.07 | 3KW | 58.0rpm | 435N.m | 85kg | 9770N | 2.30 |
| SAF77DM100LC4 | 22.89 | 3KW | 64.0rpm | 410N.m | 85kg | 8640N | 1.70 |
| SAF77DM100LC4 | 20.99 | 3KW | 69.0rpm | 375N.m | 85kg | 8550N | 1.85 |
| SAF77DM100LC4 | 18.42 | 3KW | 79.0rpm | 330N.m | 85kg | 8400N | 2.10 |
| SAF77DM100LC4 | 17.45 | 3KW | 83.0rpm | 315N.m | 85kg | 8340N | 2.20 |
| SAF77DM100LC4 | 15.28 | 3KW | 95.0rpm | 275N.m | 85kg | 8160N | 2.60 |
| SAF77DM100LC4 | 13.76 | 3KW | 106rpm | 250N.m | 85kg | 8010N | 2.80 |
| SAF77DM100LC4 | 12.07 | 3KW | 121rpm | 220N.m | 85kg | 7810N | 3.30 |
| SAF77DM100LC4 | 10.65 | 3KW | 137rpm | 195N.m | 85kg | 7610N | 3.70 |
SAF77DM100L4電動機減速機類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

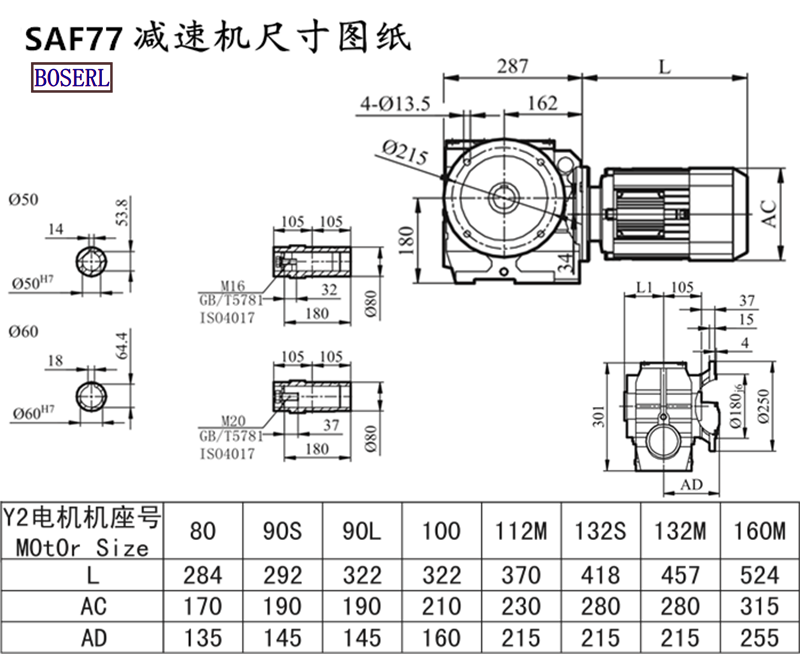

SAF77DM100L4電動機減速機安裝尺寸圖紙
SAF77DM100L4電動機減速機生產工廠展示：看廠請提前三天預約
法蘭式減速機應用案例展示：
關鍵詞:伺SAF系列減速機_法蘭式減速器與電機_法蘭式減速機_旋轉減速電機_懸掛式減速機_懸掛式電機減速器一套_SAF系列減速機生產廠家
SAF系列減速機型號：SAF37減速機,SAF47減速機,SAF57減速機,SAF67減速機,SAF77減速機,SAF87減速機,SAF97
SAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.75千瓦剎車電機減速機一體機 SAF77DM100L4 SAF77DM100LC4
